Rain Defense Hybrid Blade Installation Instructions
Find Your ARM Type
Installation Instructions

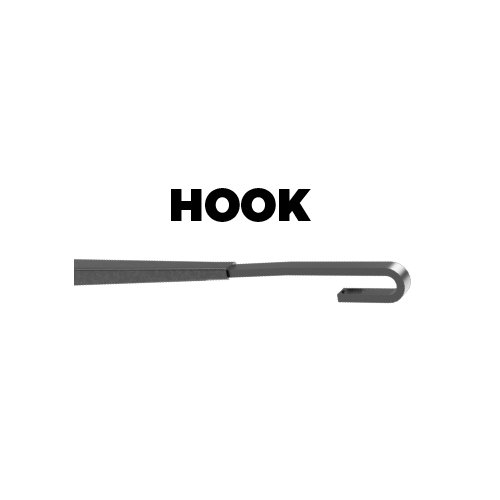

Standard Hook (9mm)

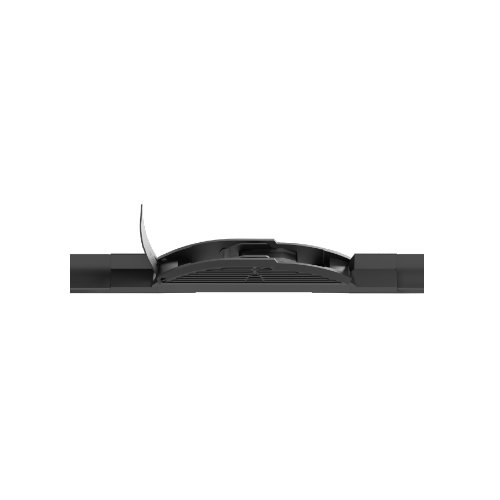

1. Open the cover flap.
2. Insert the blade into the hook.
3. Close the cover cap to lock in place.

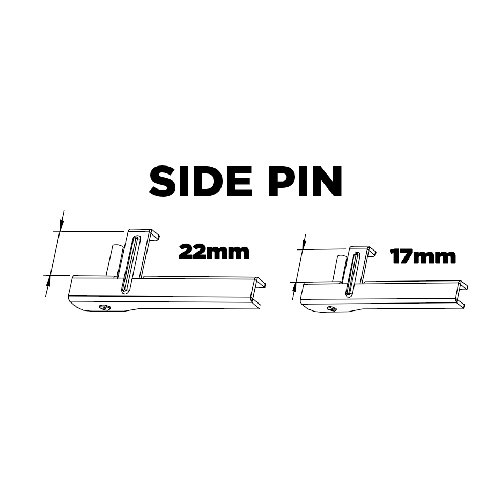

SIDE PIN

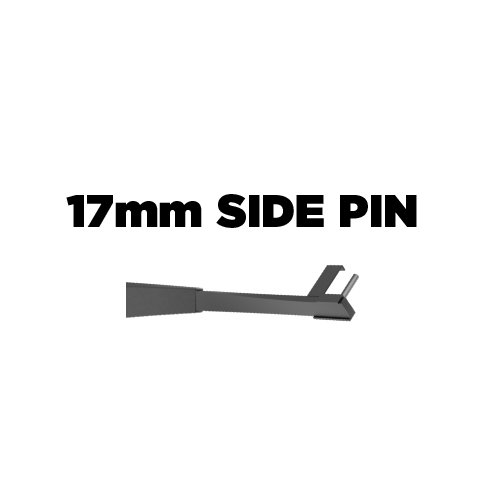

17mm SIDE PIN

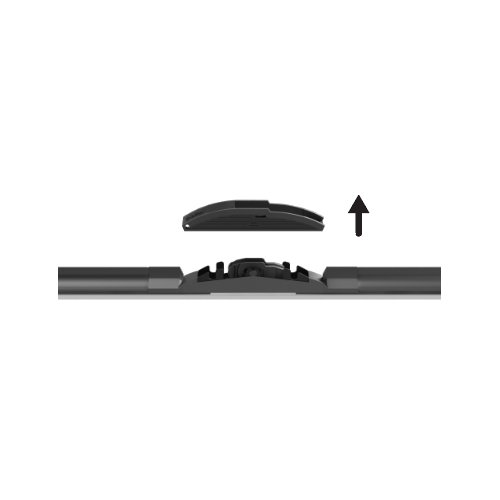

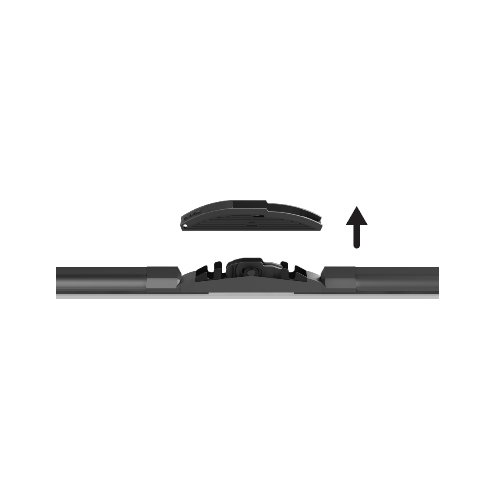

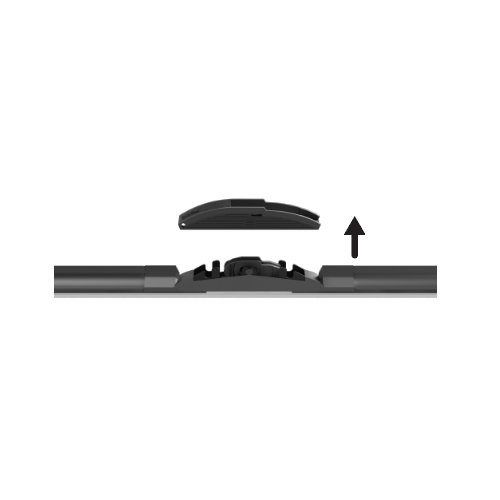

1. Remove the plastic cover.

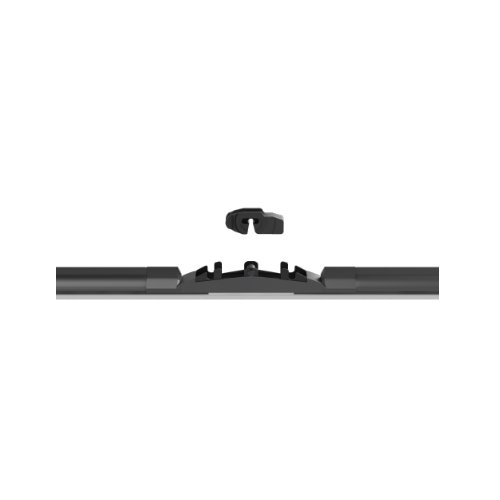

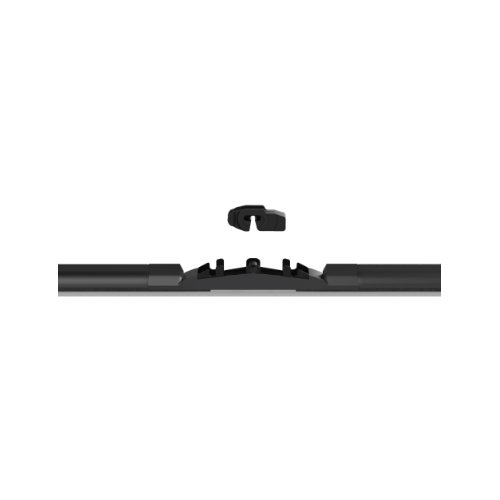

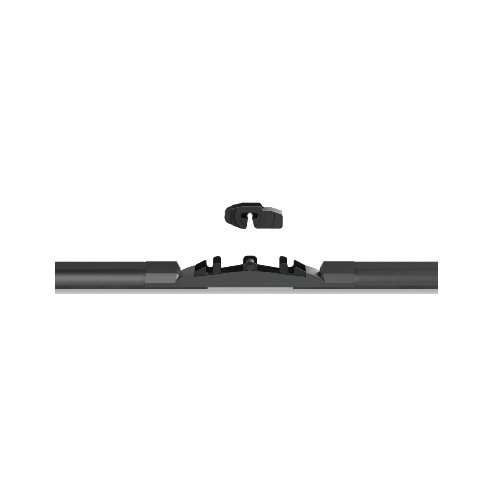

2. Remove the plastic clip & discard.

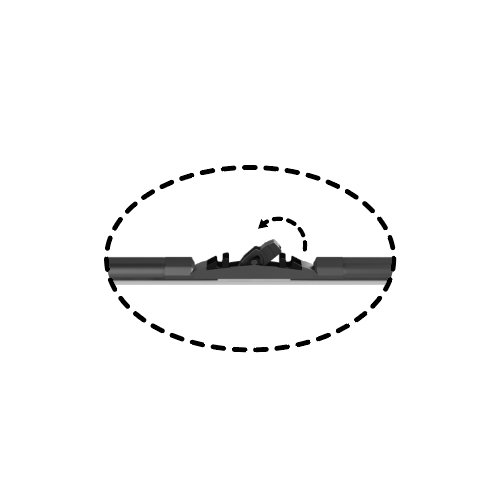

To aid removal, rotate it 180 degrees then push down

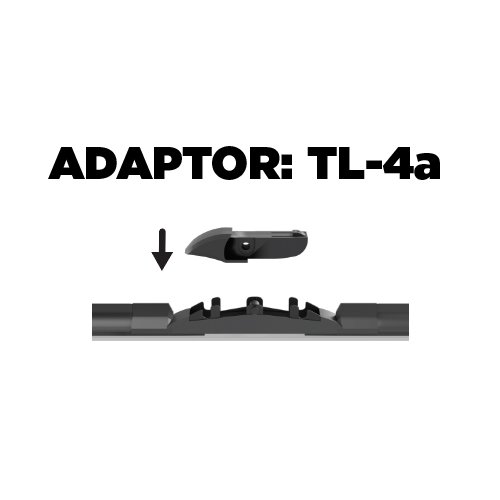

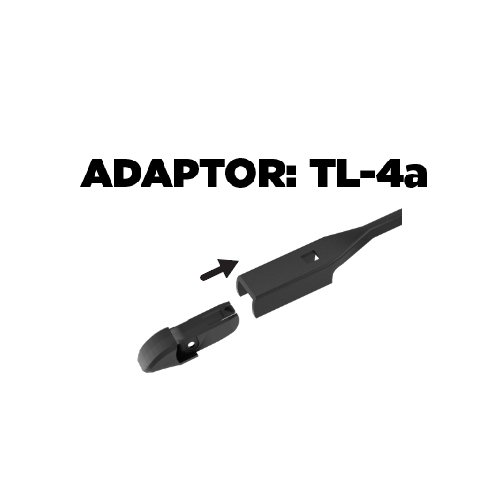

3. Click adaptor TL-4a onto the wiper blade.
4. Slide the hole in the adaptor onto the wiper arm pin.
5. Rotate the blade around to secure it in place.
6. Ensure the tab on the arm locks along the side of the adaptor.

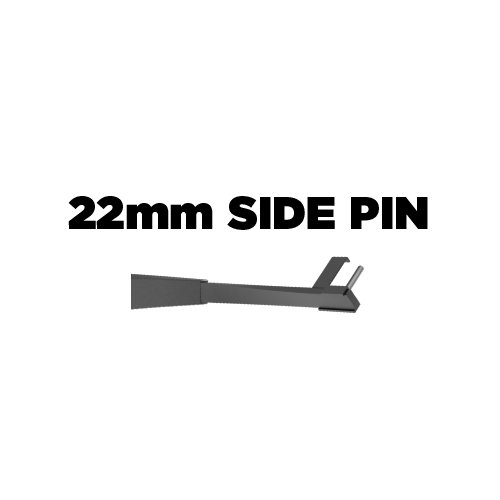

22mm SIDE PIN

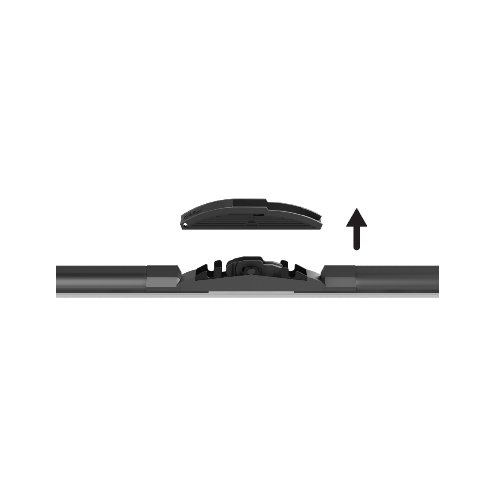

1. Remove the plastic cover.

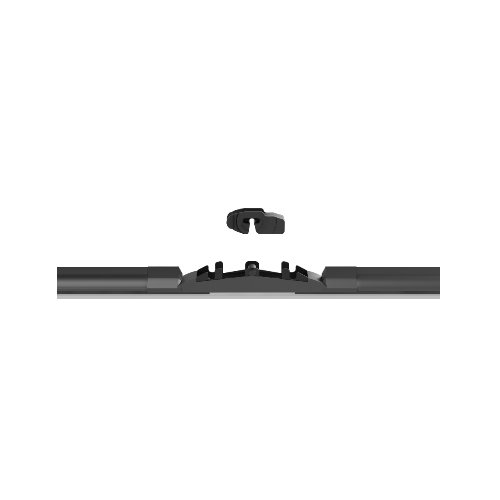

2. Remove the plastic clip & discard.

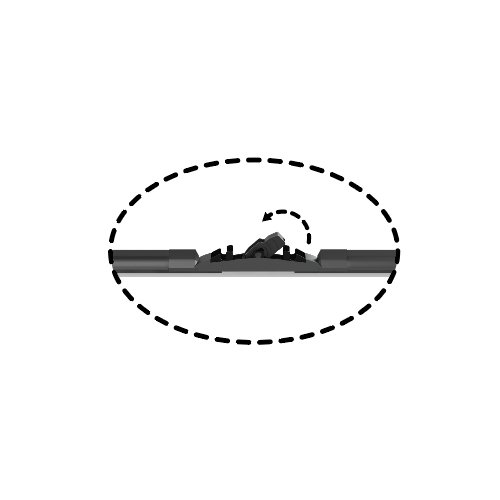

To aid removal, rotate it 180
degrees then push down

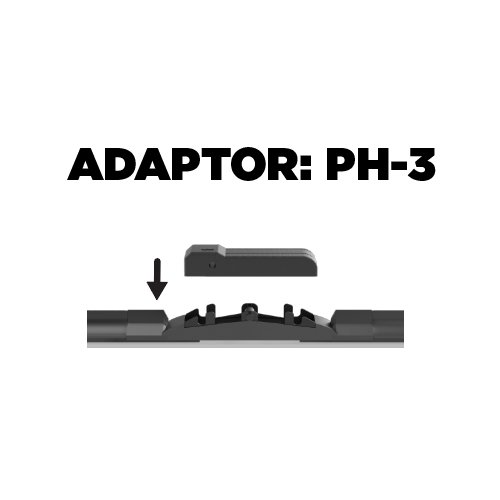

3. Click adaptor PH-3 onto the wiper blade.

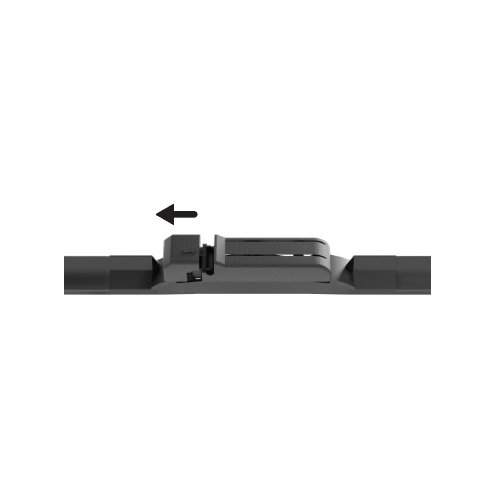

4. Slide open the cover on the adaptor.
5. Place the pin on the wiper arm into the groove on the adaptor, then slide the cover back into place.

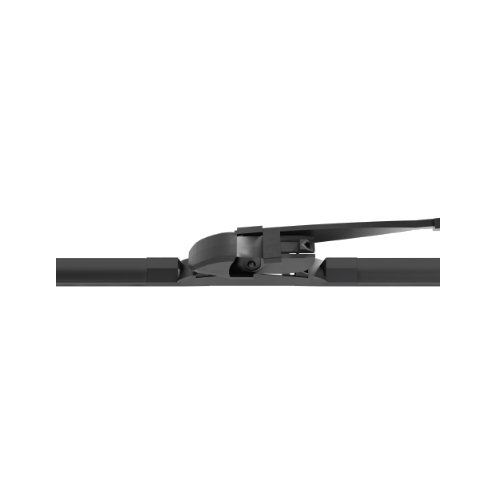

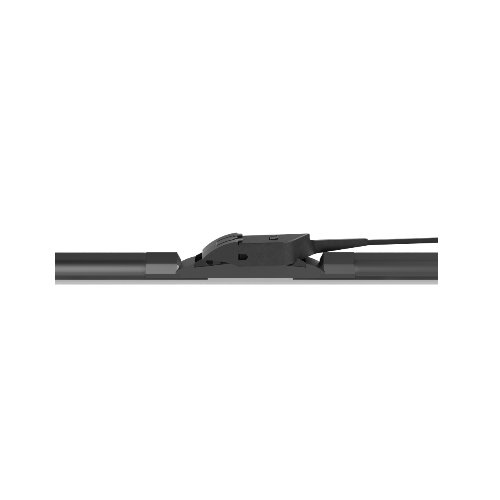

6. Ensure the blade is locked firmly onto the arm.

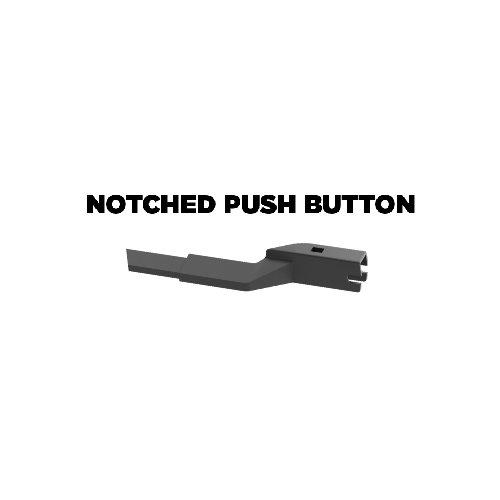

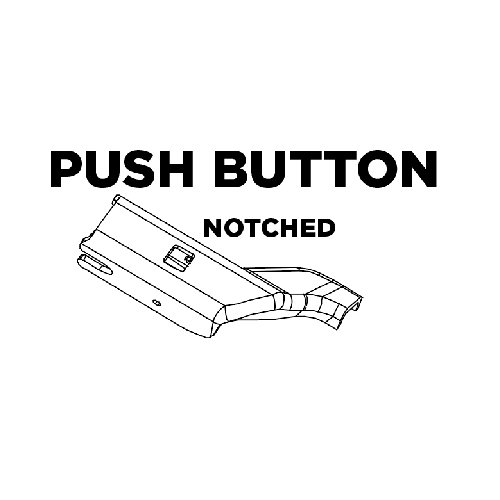

Push Button Notched

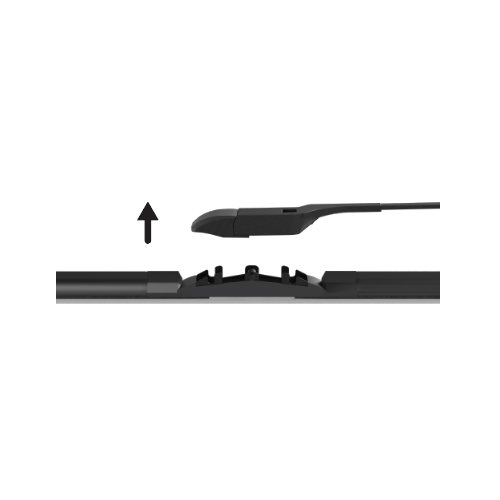

1. Remove the plastic cover.

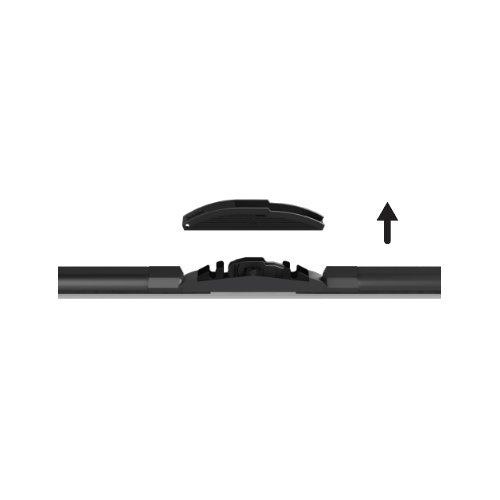

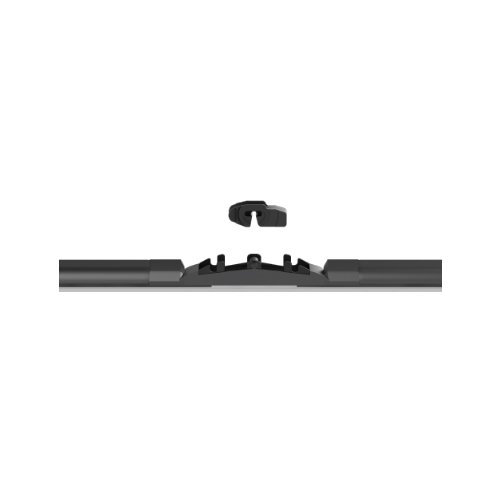

2. Remove the plastic clip & discard.

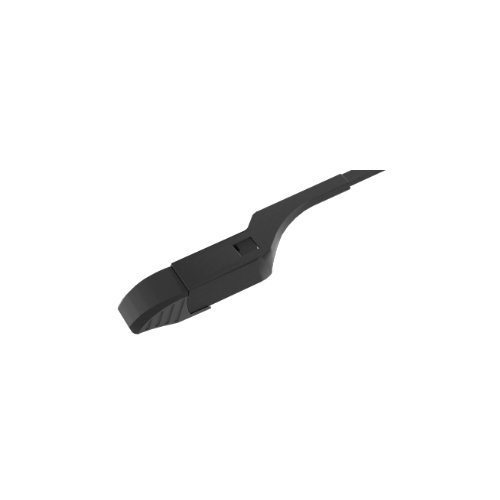

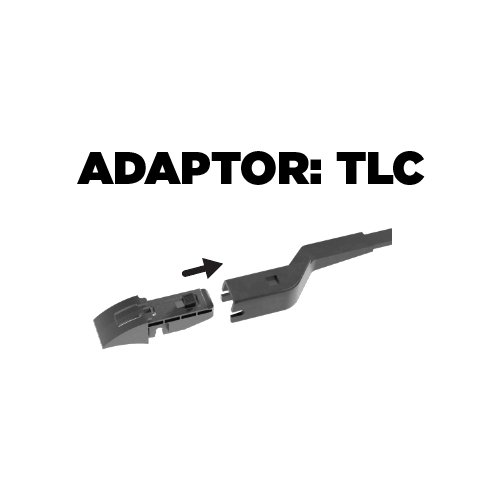

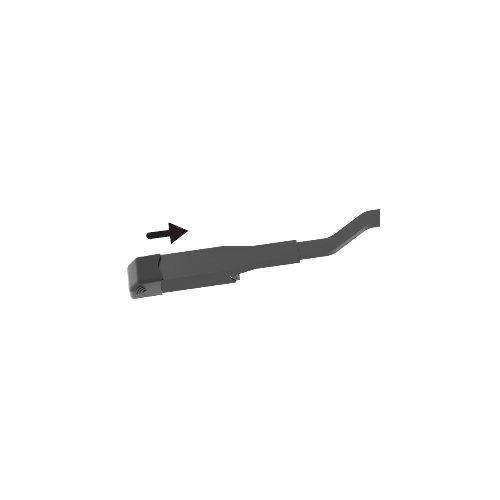

3. Slide clip TLC into the end of the wiper arm.
4. Ensure the button locks in place.

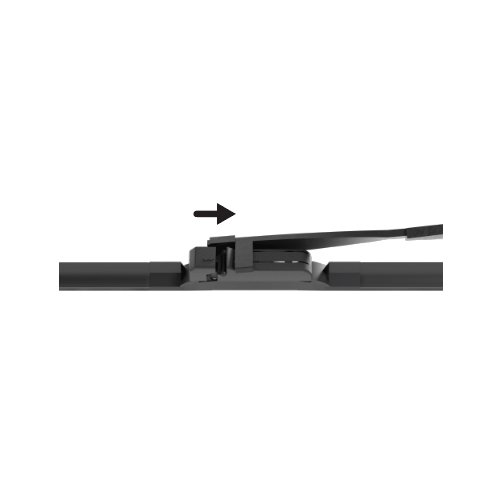

5. Click the wiper blade into the underside of the clip.

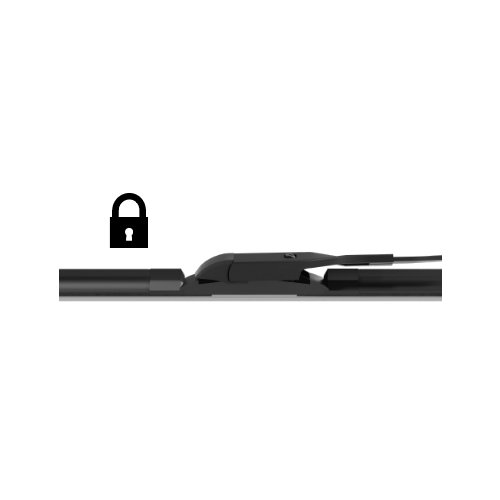

6. Ensure the blade clicks firmly into place.

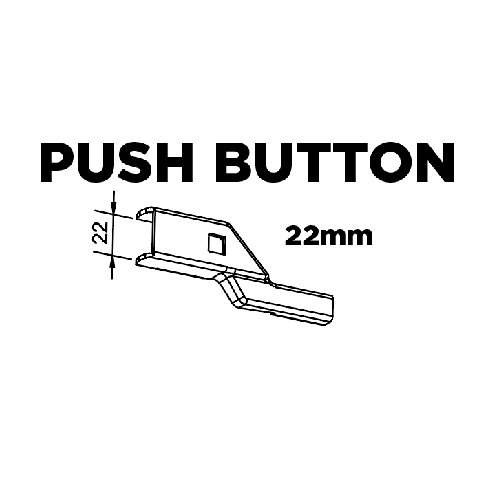

22MM Push Button

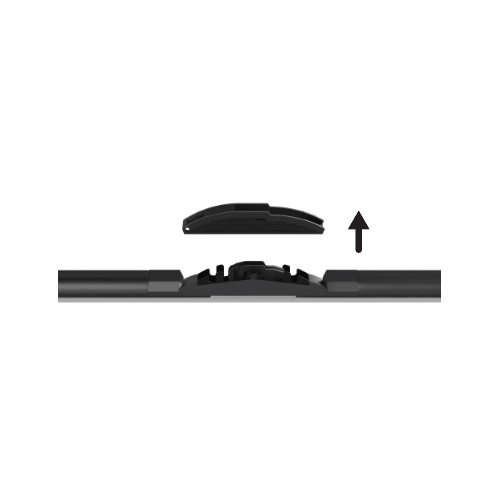

1. Remove the plastic cover.

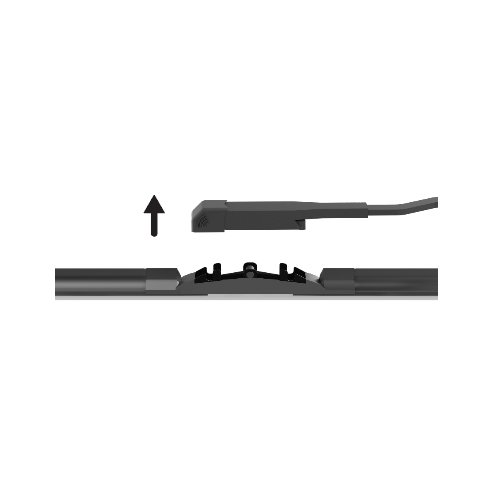

2. Remove the plastic clip & discard.
To aid removal, rotate it 180 degrees then push down
4. Ensure the button locks in place.
5. Click the wiper blade into the underside of the clip.
6. Ensure the blade clicks firmly into place.

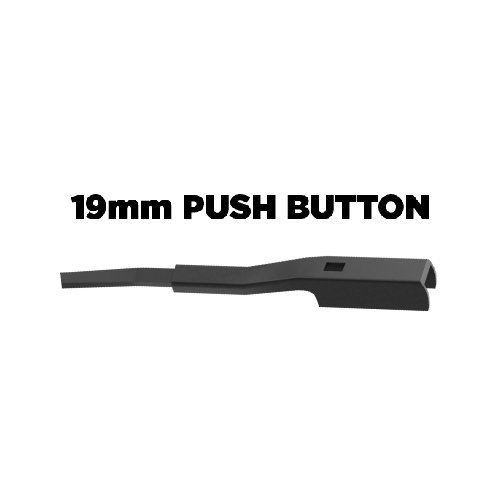

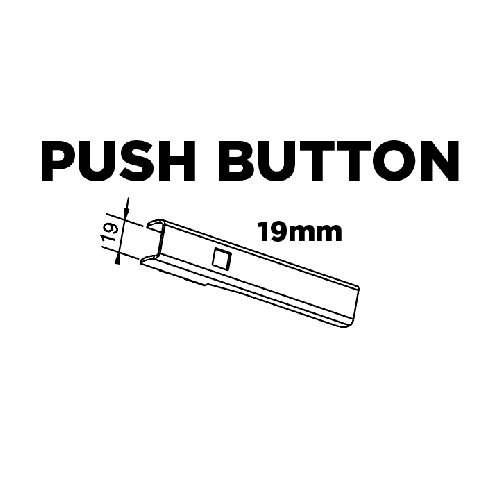

19MM Push Button
1. Remove the plastic cover.

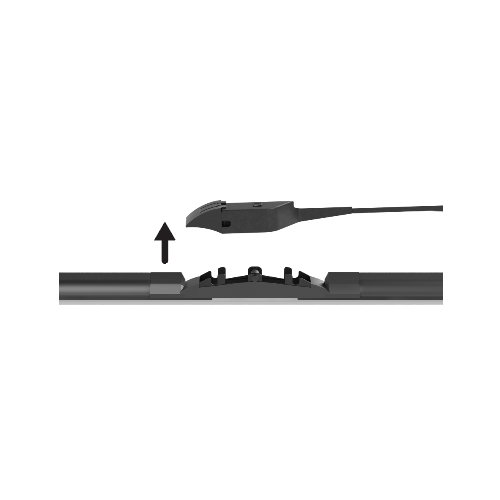

2. Remove the plastic clip & discard.
To aid removal, rotate it 180 degrees then push down

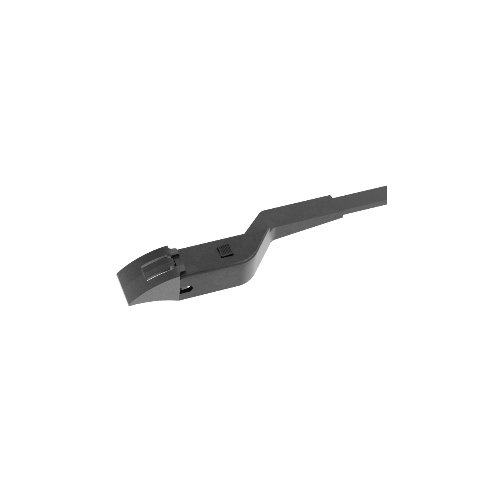

4. Ensure the button locks in place.
5. Click the wiper blade into the underside of the clip.
6. Ensure the blade clicks firmly into place.

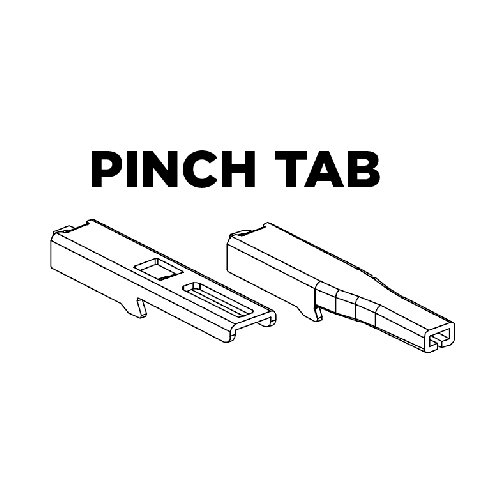

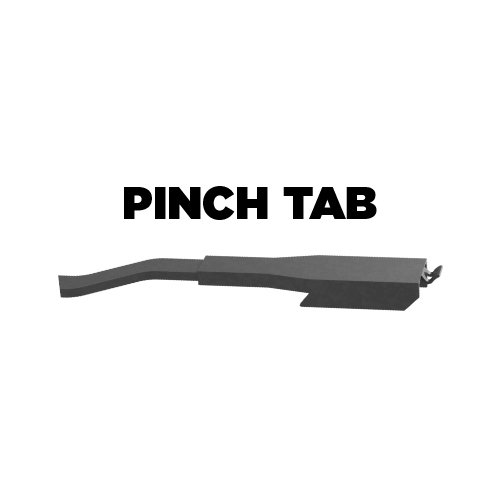

Pinch Tab

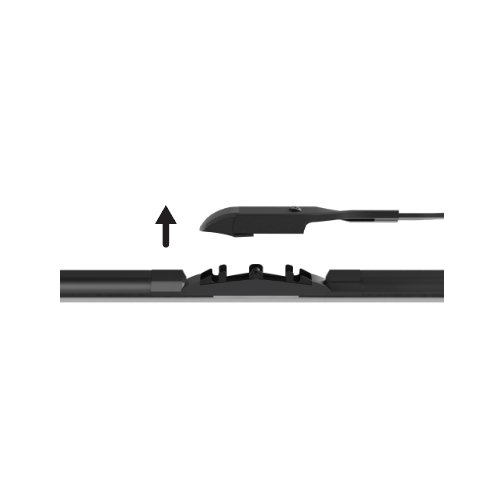

1. Remove the plastic cover.
2. Remove the plastic clip & discard.
To aid removal, rotate it 180 degrees then push down

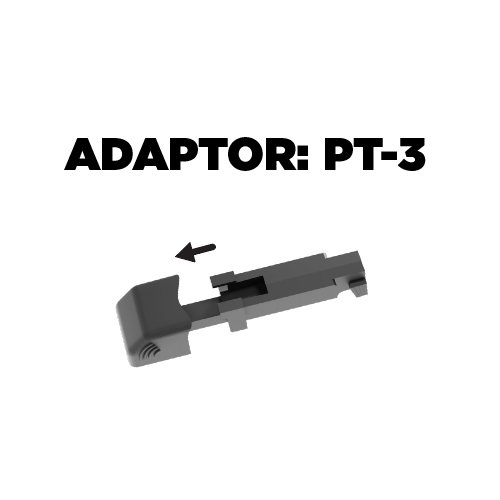

3. Slide open the cap on the end of adaptor PT-3.

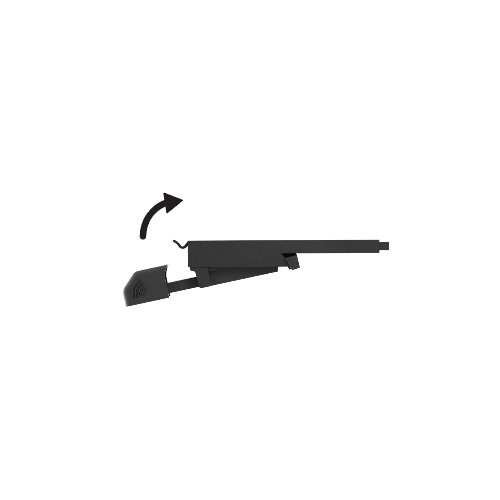

4. Locate the back wings on the wiper arm into the back of the adaptor, then rotate the adaptor upwards.

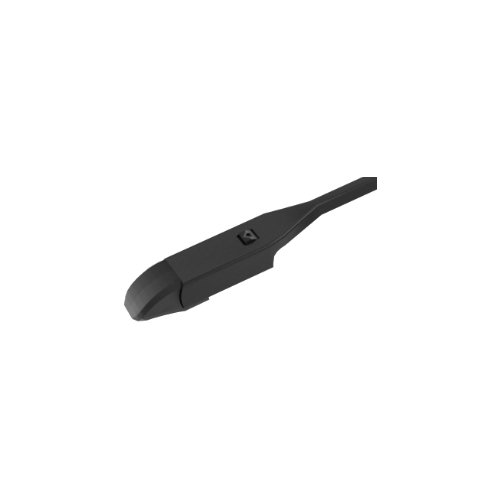

5. Slide the end cap closed, securing it to the wiper arm
Important
After installation, Activate the water-repellent coating* before use.
- Thoroughly clean your windshield. Use a specialist cleaner such as Invisible Glass trigger or aerosol spray. For a more thorough clean to remove heavy contaminants and coatings, consider Invisible Glass Glass Stripper.
- Run your wiper blades on low speed, on a dry winshield, for 5 minutes. Some modern vehicles with rain sensors may slow or pause wiping after a number of dry cycles. If this occurs, use a water spray gun, or the vehicle washer jets, to apply a small amount of water to the windshield.
- Enjoy crystal clear vision with your new Invisible Glass wiper blades.
*Only applicable for wiper blade models that include water-repellent coating
